Fire Fighting Vehicles Manufacturers And Suppliers


SALIENT FEATURES OF MERAJ FIRE TRUCK

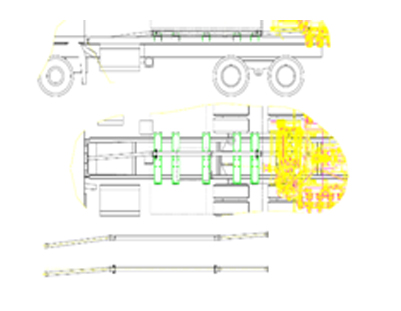

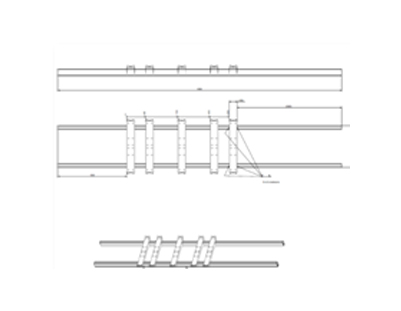

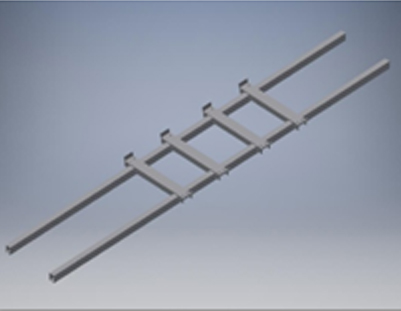

  • SUB FRAME CONSTRUCTION
      • Sub frame construction concept make it easy to construct body for any kind of chassis or complex design
      • Body can be constructed even chassis is not available in modular body design and for Exports as well
      Read more Read less
      • Easy to mount/dismount tank and compartments
      • Easy to put drive shaft from PTO to Pump
      • Most of the Weight is on the sub-frame and protect chassis from any damage
      • Allow the chassis to twist on the jumps and turns without damage the body

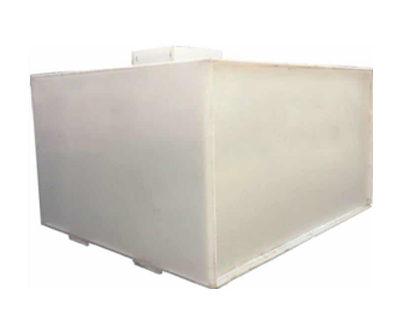

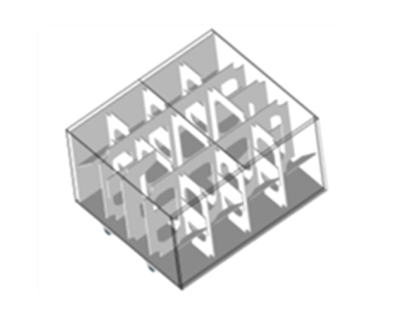

  • POLYPROPYLENE TANK DESIGN
    • Meraj Poly-Production has advance and latest machine for plastic fabrication including CNC cutting and butt welding. Meraj has experience engineers and fabrication team especially dedicated for Plastic tank designing, FEA analysis and manufacturing. Features includes:

      Read more Read less
      • CUSTOM MADE DESIGN TANK FROM 500 LITER TO 10,000 LITERS
      • CORROSION RESISTANCE
      • CHEMICAL RESISTANCE
      • HEAT RESISTANCE
      • UV PROTECTIONLIGHTER THAN STEEL AND FIBER GLASS
      • DESIGN TO SUSTAIN ALL DYNAMIC FORCES AND PRESSURE
      • PAINTABLE
      • DURABLE
      • LONG LIFE
      • EASY TO WELD AND REPAIR
      • EASY TO MOUNT ON ANY CHASSIS

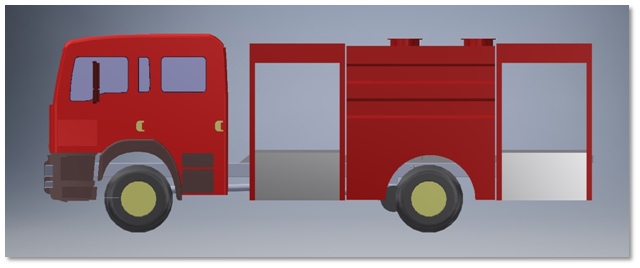

      3D Modeling Design

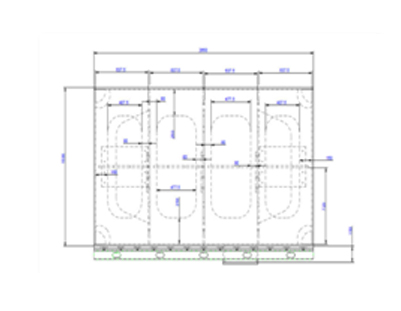

      2D Drawing on AutoCAD

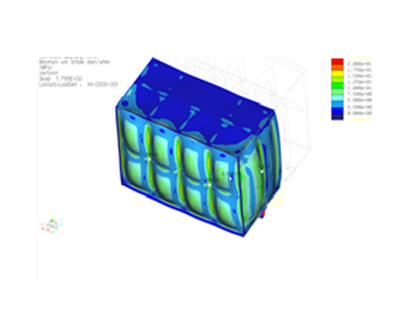

      Finite Element Analysis

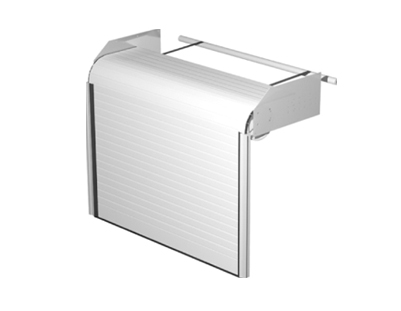

  • ALUMINUM SHUTTERS
      • The new design are dust proof, waterproof and rattle free due to special polymer seal inserted between each lugs
      • They are provided with roller bar and lock for the safety of equipment in locker compartment.
      Read more Read less

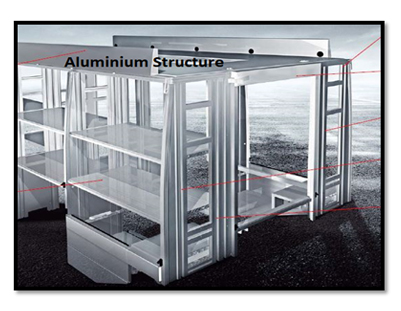

  • ALUMINUM SUPER STRUCTURE
      • Modular aluminum superstructure design having a long life due to its non-corrosive properties and also lighter in weight cause vehicle to carry extra load.
      Read more Read less

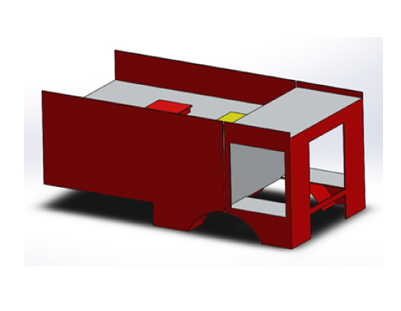

  • POLY PROPYLENE MODULAR BODY
      • Modular Polypropylene body concept design which has been made from Polypropylene sheet including Tanks.
      Read more Read less
      • The individual components are cut from CNC machine into various shapes and subsequently fabricated by a welding process into one final vehicle body along with reinforcement gussets where ever required.
      • Ready to mount on chassis frame.
  • PRO-E DESIGNING LAB FOR LOAD DISTRIBUTION
    • Read more Read less

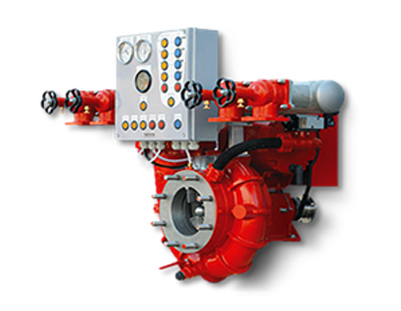

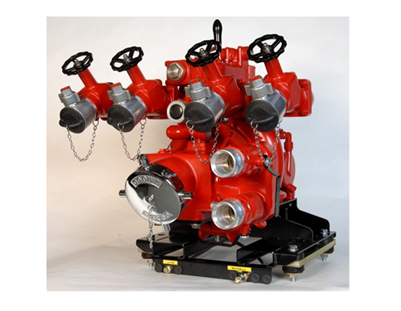

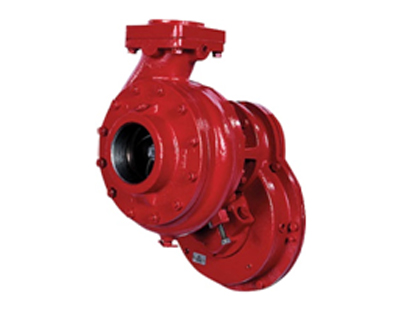

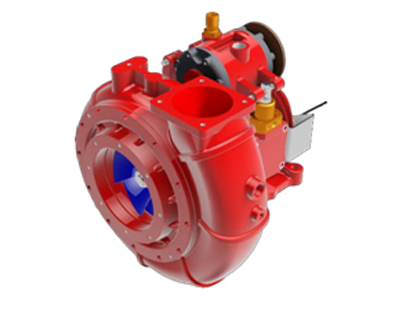

  • FIRE FIGHTING PUMP
      • Wide range of Normal /High Pressure single stage or multistage Centrifugal Fire Pumps from Europe and America as per EN / NFPA compliance.
      • NORMAL Pressure Output upto 6000 LPM at 10 bar with 3 Mtrs suction lift.
      Read more Read less
      • HIGH PRESSURE OUTPUT UPTO 250 – 400 LPM at 40 bar.
      • Rotary Vane Electric / automatic piston typepriming pump option is also available.
      • Manual / Automatic “Around-the-pump” foam proportioning system. Freely selectable foam mixing rate Proportioning rate 1% to 10%.
      • PUMP Made of sea water resistant aluminum alloy or bronze construction, shaft made of stainless steel. self-adjusting Mechanical seal type, Maintenance free, without oil.
      • PUMP drive by means of PTO, located either midship or rear mounted.

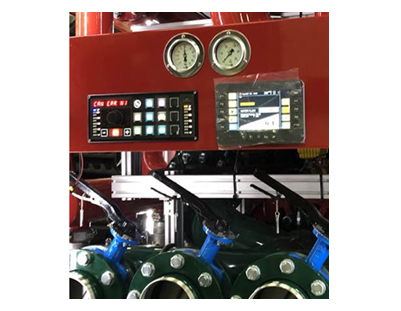

      • Logic control system pump operation panel based on canbus system.

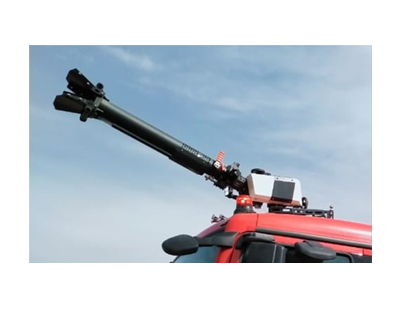

  • ROOF MONITOR
      • MERAJ DEVELOPED electric remote controlled roof monitor is all rounder that is commonly used for airport, industrial and commercial trucks.
      • Capable to deliver a Maximum flow rate upto 5,000 lpm @ 10 bar (Electronically adjustment) with water and foam. Adjustable to full STRAIGHT jet/ stream, wide angle fog.
      Read more Read less
      • Detachable foam barrel with Deflector.
      • DCP Integration (upto 15 kg/sec) with the same monitor

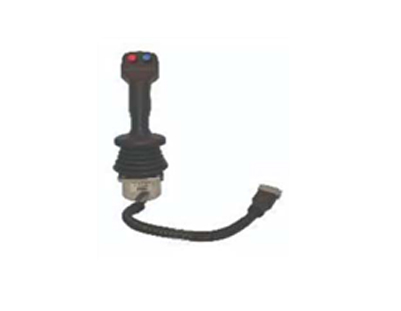

      • Electronic control via canbus with absolute position detection. One hand operation by means of electronically controlled joystick / control handle makes operation very fast and accurate fire fighting.
      • In case of emergency manual actuation can be done via hand wheels.
      • Having an excellent throw range upto 85 mtrs for water & 76 mtrs for foam with foam barrel (Depends upon certain conditions).
      • Swivel range: -20° to +90°
      • OPTIONAL CAMERA can be installed on the monitor to view operation from the cabin.

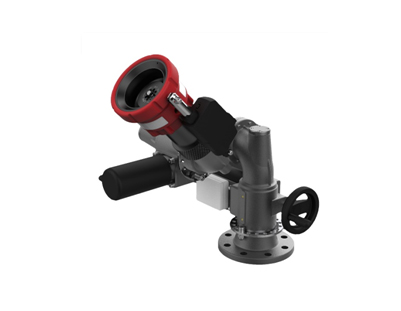

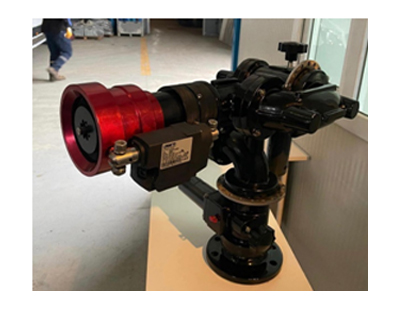

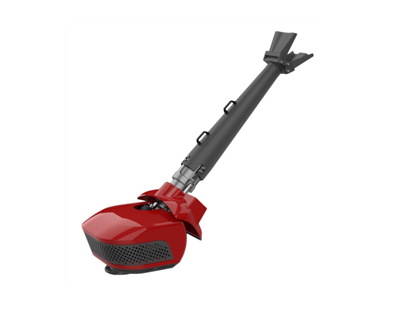

  • BUMPER MONITOR
      • MERAJ DEVELOPED electronically controlled bumper turret with DCP nozzle is a compact turret designed to use as a BUMPER turret for arff and also main turret for municipal vehicle.
      Read more Read less
      • Capable to deliver a Maximum flow rate upto 3,000 lpm @ 07 bar with water / foam Drive via electric motor and canbus electronic controlled with absolute position detection.
      • Detacheable foam barrel with deflector. Dcp integration (upto 10 kg/sec)
      • One hand operation by means of electronically controlled joystick / control handle from the cabin.
      • In case of emergency manual actuation can be done via hand wheels.
      • Rotation 180°
      • elevation: -80° to +90°
      • OPTIONAL CAMERA can be installed on the monitor to view operation from the cabin.

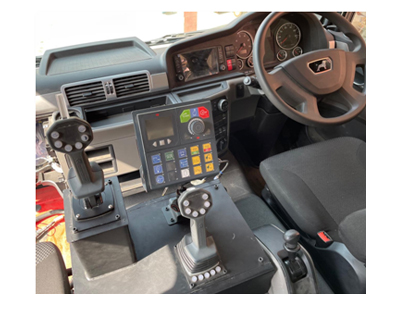

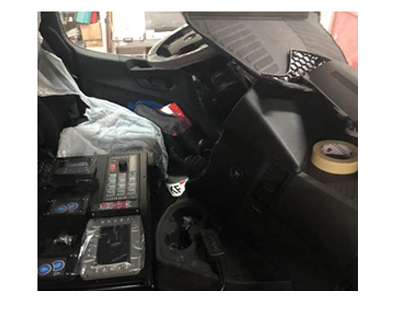

  • IN CAB PUMP & MONITOR CONTROLS
    • IN CAB CONTROLS that allow the operator / driver to control the pump and monitor operation from the cab without leaving the seats. These controls equipped with (but not limited to):

      Read more Read less
      • 7” tft display screen to monitor foam controls in the cab with display like
        • Water and foam flow value
        • Foam proportional rate
        • Foam level gauge
        • Flushing progress bar
        • Warning indicators
        • Pump working hour counter
      • Soft function keys and hard keys
      • IP-65 class protection
      • Operating temperature -30 ° C to +70 °c
      • Can control via software
      • Internationally approved standards available i.e. ISO 11898 & SAE J1939.
      • CANbus can use languages like C, or IEC 1131-3 compliant graphical program, Function Block Diagram, Ladder Diagram, Instruction List, Structured Text or Sequential Function Chart.
