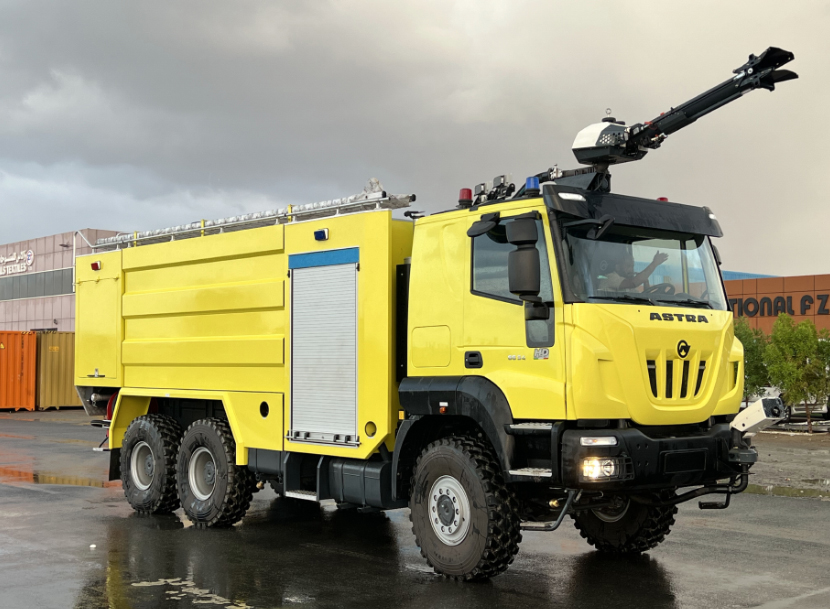

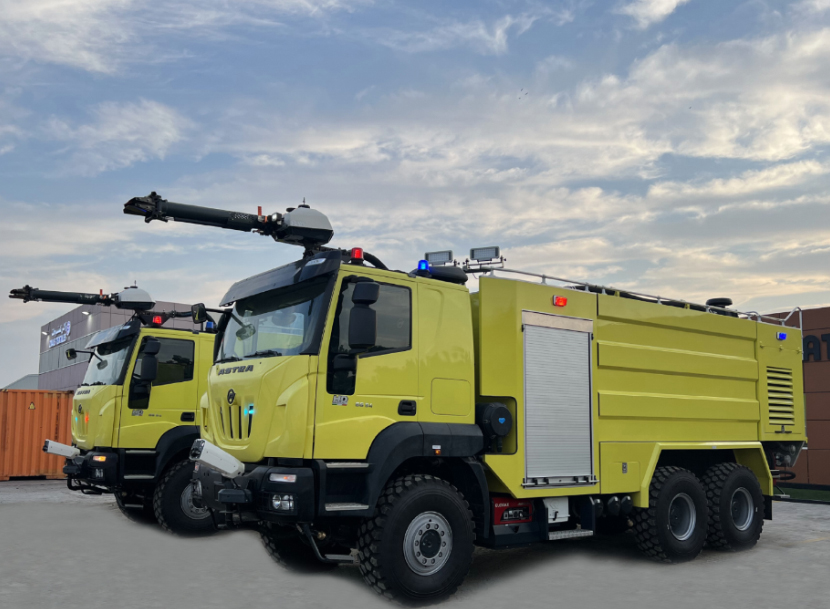

Crash Tender (ARFF)

Fire Crash Truck 4x4 & 6x6

MERAJ manufactured Fire Crash Tenders are made on modified Commercial Chassis meeting or exceeding the ICAO requirement. Crash tenders are equipped with minimum 480 HP Diesel Engine and fully automatic transmission with torque converter. Crew Cabin for Driver + 3 Crew Member are provided with easy access to meeting response time as per ICAO standard.

Water Tank made from Polypropylene Sheet with capacities from 4000-5500 Liters on 4x4 Chassis and 6000-12000 liters on 6x6 Chassis and accessories as per customer requirement, Meraj manufactured Fire Crash Tenders are ready to face the challenges for Airport Fire and Rescue Service.

Salient Features of Crash Tender are:

  • Single Rear type Configuration for 4x4 and 6x6
  • Acceleration 0 – 80 km/hr within 30 Seconds
  • Pump and Roll Operation
  • Angle of Approach and departure 30 degrees
  • Tilt Angle 28 degrees
  • Upto 6000 LPM Single / Multi pressure Fire Pump as per EN 1028 standard / NFPA compliance.
  • Automatic Foam Proportioning System
  • Manual / Fully automatic electrically operated Roof Monitor Ranging upto 5,000 Ltrs with maximum throw range upto 80 Mtrs.
  • Remote Controlled Bumper Turret of 1,000 – 1,500 LPM
  • Polypropylene High Strength Water and Foam Tank (optional S.S tank)
  • DCP module ranging from 225 – 750 kg DCP vessel with nitrogen propellant.
  • CO2 module
  • In Cab Controls of Pump and Monitors for operator and drivers without leaving seats.
  • All Electric system will be controlled / operate via CANBUS Controls.
  • High Intensity Audio & Visual Equipment
  • State of Art Latest Technology Fire Fighting Equipment, PPEs & Rescue Equipment & Tools as per customer requirement.
  • Ergonomically designed Control Panel with Night/smoke Assist Driving
